labelme格式与yolo格式区别

labelme格式与yolo格式区别

Labelme格式和YOLO格式是两种用于图像标注的常见格式,主要用于目标检测和图像分割任务。

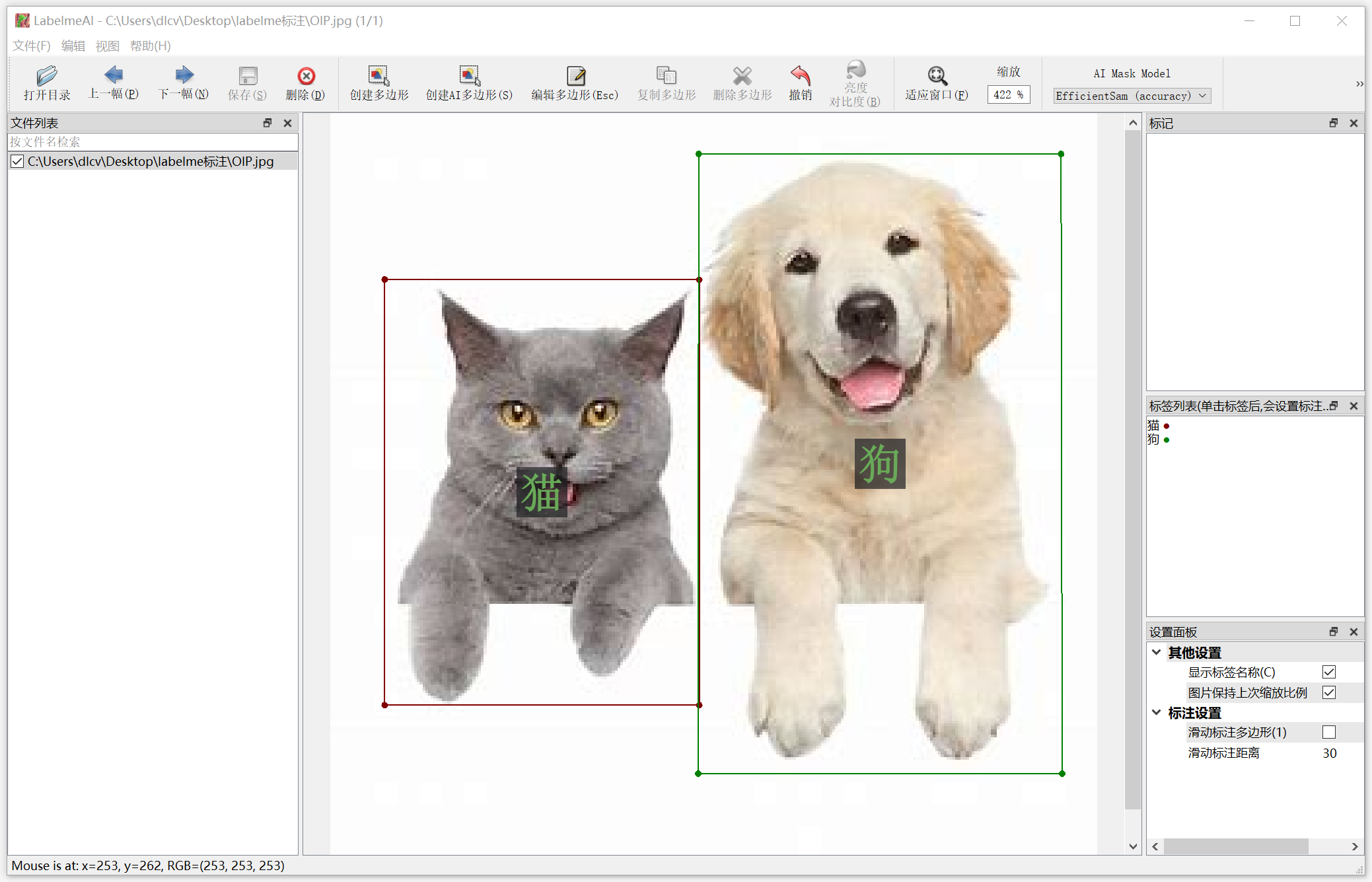

矩形标注:

矩形标注labelme文件格式(json):

{
{
  "version": "2024.11.5.0",
  "flags": {},
  "shapes": [
    {
      "label": "猫",
      "points": [
        [
          19.417808219178088,
          59.86986301369862
        ],
        [
          132.29452054794524,
          212.47260273972603
        ]
      ],
      "group_id": null,
      "description": "",
      "shape_type": "rectangle",
      "flags": {},
      "mask": null
    },
    {
      "label": "狗",
      "points": [
        [
          132.02054794520546,
          14.664383561643813
        ],
        [
          262.1575342465753,
          236.85616438356163
        ]
      ],
      "group_id": null,
      "description": "",
      "shape_type": "rectangle",
      "flags": {},
      "mask": null
    }
  ],
  "imagePath": "OIP.jpg",
  "imageData": null,
  "imageHeight": 277,
  "imageWidth": 275
}

矩形标注yolo文件格式(.txt):

1 0.275840597758406 0.4915928984718857 0.41046077210460785 0.5509124177834924
0 0.7166874221668742 0.45400820928737445 0.47322540473225405 0.8021363928589091

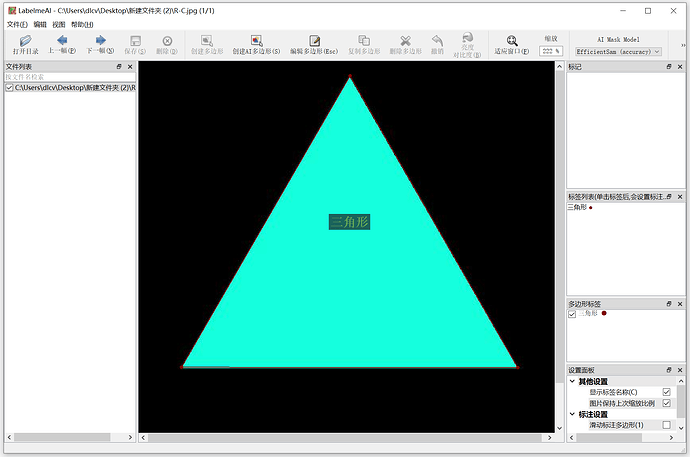

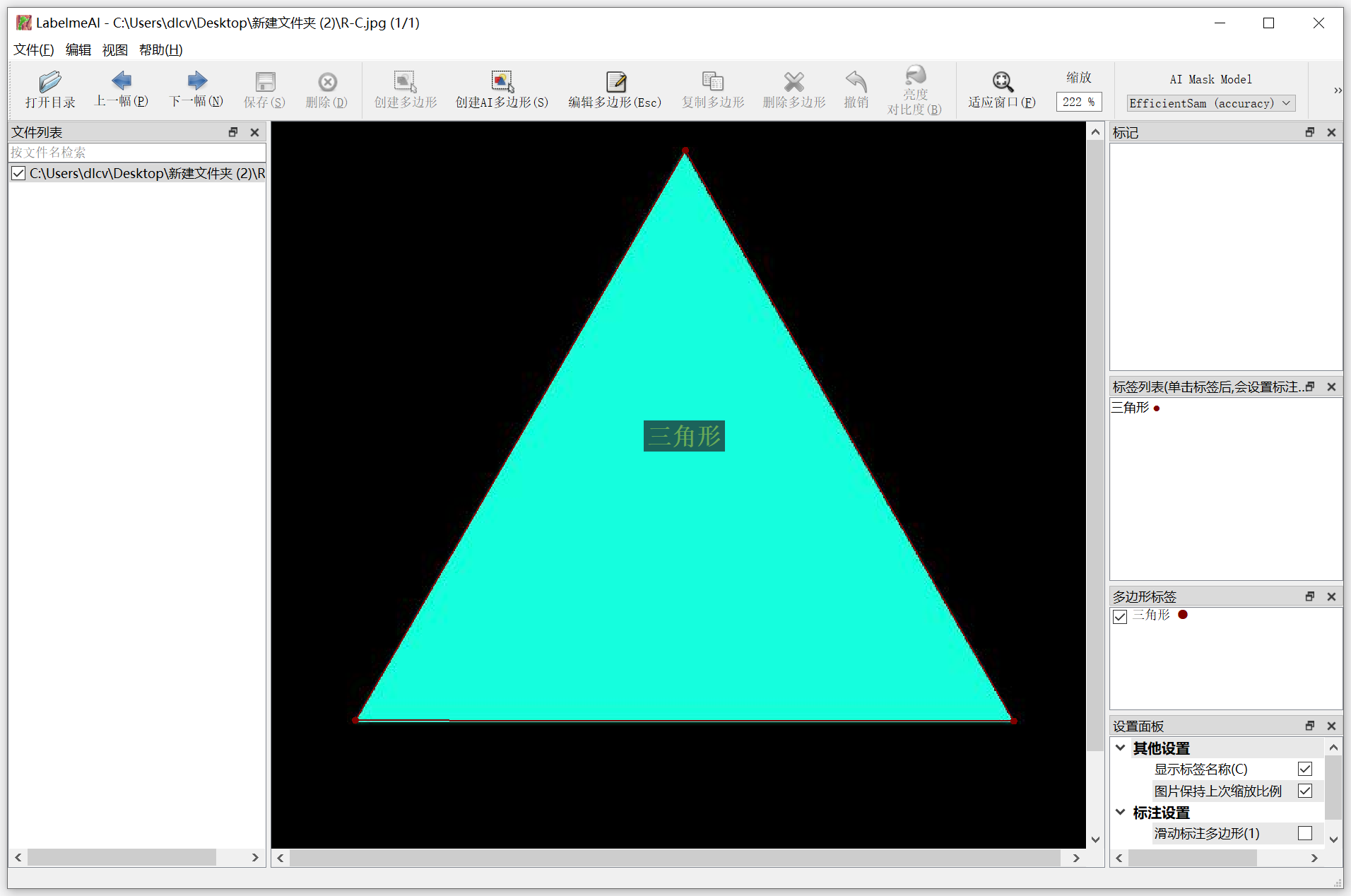

多边形标注:

多边形标注labelme文件格式(json):

{
  "version": "2024.11.5.0",
  "flags": {},
  "shapes": [
    {
      "label": "三角形",
      "points": [
        [
          263.98019801980195,
          18.316831683168317
        ],
        [
          53.58415841584159,
          381.68316831683165
        ],
        [
          473.38613861386136,
          382.1782178217822
        ]
      ],
      "group_id": null,
      "description": "",
      "shape_type": "polygon",
      "flags": {},
      "mask": null
    }
  ],
  "imagePath": "R-C.jpg",
  "imageData": null,
  "imageHeight": 523,
  "imageWidth": 524
}

多边形标注yolo文件格式(.txt):

0 0.5037790038545839 0.03502262272116313 0.1022598443050412 0.7297957329193722 0.9034086614768346 0.7307422902902145

Labelme格式:

  • 以JSON文件格式存储每个标注的形状(如多边形、矩形等)的坐标信息,每个图像对应一个同名的json文件。
  • 支持多边形、矩形、线条、圆、点等多种形状的标注。
  • 坐标通常是绝对值,表示图像中标注形状的具体像素位置,一个多边形的坐标是一个包含多个点的数组。
  • 提供图形用户界面(GUI),可以图像上进行标注,直接生成JSON文件。

YOLO格式:

  • 以文件文本(.txt)存储,每个图像对应一个同名的.txt文件,文本内容每一行对应一个标签信息。

  • 主要用于矩形框的标注,更适合目标检测任务。

  • 坐标是相对值,通常是归一化到[0, 1]区间;
    矩形框的表示形式为:<class_id> <x_center> <y_center> < width >< height>.
    <class_id> :这是目标的类别编号,通常从0开始.
    <x_center>:这是目标在图像中的中心点的x坐标,归一化到[0, 1]范围内.
    <y_center>:这是目标在图像中的中心点的y坐标,归一化到[0, 1]范围内.
    < width >:这是目标的宽度,归一化到[0, 1]范围内.
    < height >:这是目标的高度,归一化到[0, 1]范围内.

    多边形的表示形式为:<class_id> < polygon Vertices>.
    < polygon Vertices>:表示多边形的顶点数组,归一化后的x和y坐标.
